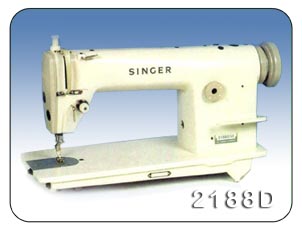

Singer 2188D High Speed Auto Oil Straight Stitch

Singer 2188D High Speed Auto Oil Straight Stitch
Item# Sin2188D
Regular price: $459.99
Sale price: $344.99
Free Shipping:
Availability: Usually ships the same business day.

Singer 2188D High Speed Auto Oil Straight Stitch Sewing Machine Product Details

Price is for machine head ONLY. Does not include table or motor.


Medium performance lockstitch operation on light, medium and heavy materials, according to individual variety specifications
Features:
  • Horizontal axis rotation hook
  • Built-in >knee lifter
  • Fully automatic lubrication. Oil is circulated by a centrifugal pump, from the oil reservoir in maching base. Oil flow indicator located on arm top cover.
  • Steel feed shafts with journal bearings for long life.
  • Large feed regulation dial in front of arm.
  • Easy to operate feed reverse lever.
  • Easy to attach belt guard.

    General Specifications:


  • Bed dimensions:            Length:18 3/4" (477 mm)

  •                            Width:7" (178 mm)

  • Space to right of needle: 10 5/16" (262 mm)

  • Machine pulley size:      3 5/32" (80 mm) effective
  • Diameter for V-belt

  • Needle Cat. No.:          1515-01

  • Motor required:           Singer® clutch motor high speed 1/2 H.P.

  • Needle bar Stroke:        1 13/64" (30.5 mm) for 200A

  •                           1 3/8" (35 mm) for 300A

  • Clearance under presser foot:
          By hand:            1/4" (6 mm)
          By knee:            1/2" (13 mm)
